[Product Category]:

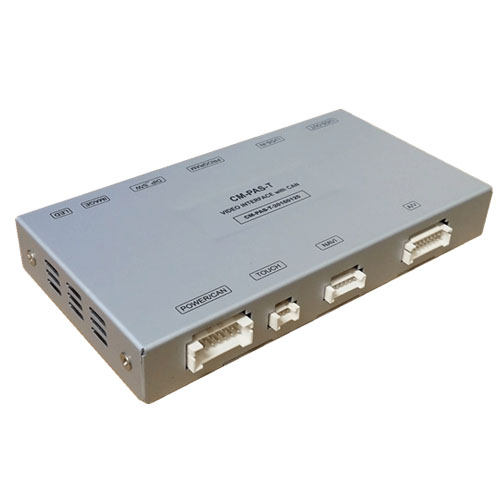

Chrysler 300C Car Interface

Brand
Product Model
CHRYSLER
CM_PAS_T
[ Compatible Car List ]
Chrsler300C(2011~2015)
Ghibli (2014~2016)
Quattroporte (2014~2016)
General description
CAN/LVDS : Plug&Play
Switching : OEM button
Rear detect : by CAN
Specification
  1. Input Spec. (MULTI VIDEO INTERFACE)

   – 2 x A/V Input (External video source).

   – 1 x CVBS(REAR CAMERA) Input. (Rear camera source)

   – 1 x CVBS(FRONT CAMERA) Input. (Front camera source)

   – 1 x Analog RGB Input (Navigation System output)

   – 1 x LVDS Input. (Car Command System)

  1. Output Spec.

   – 2 x CVBS Output (Video out for Installing Headrest Monitor)

   – 1 x Audio L/R Output.

   – 1 x LCD Output (LCD Operation)

  1. Power Spec.

   – Input Power : 8VDC ~ 24VDC

   – Consumption Power : 12Watt, Max

  1. Switch Input mode

   – Possible to select Display Size while switching mode by DIP S/W

   – By button on the Commander in the car via CAN

Product Package
