[Product Category]:

BMW 1,3,5,6 / X5,X6 Series PAS AV Interface

Brand
Product Model
BMW

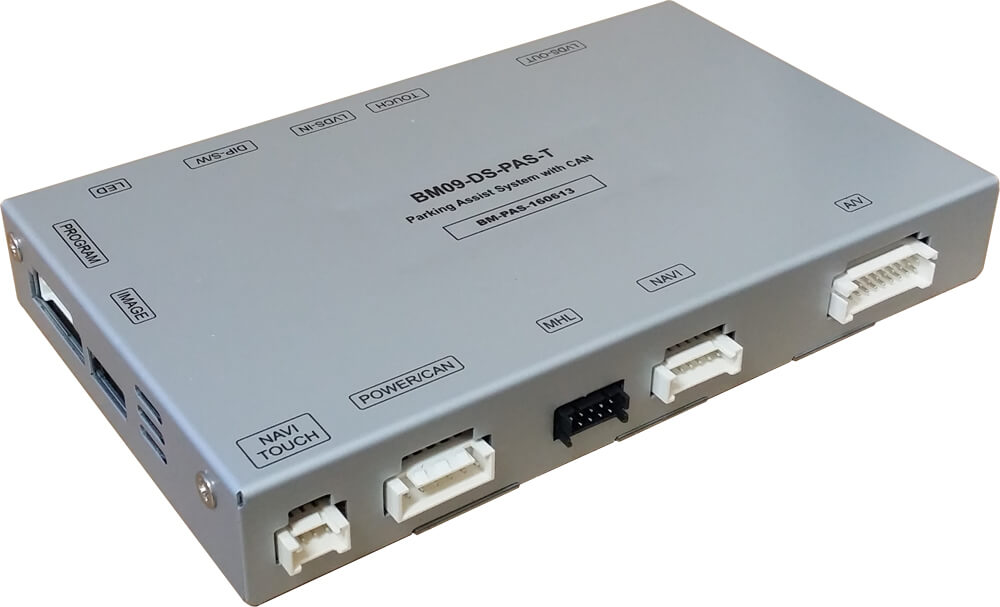

BM09 DS PAS T
[ Compatible Car List ]
All cars with CIC system
BMW 1, 5, 6 Series (2009~2013)
BMW 3 Series (2009~2011)
BMW X5, X6 (~2012)
MINI (2010~2012)
General description
LVDS : Plug&Play
POWER : Plug&Play Switching : OEM button
Rear detect : by CAN
Specification
  1. Input Spec. (MULTI VIDEO INTERFACE)

   – 1 x CVBS(REAR CAMERA) Input. (Rear camera source)

   – 1 x CVBS(FRONT CAMERA) Input. (Front camera source)

   – 1 x Analog RGB Input (Navigation System source)

   – 1 x Analog RGB Input (MHL System source)



  1. Output Spec.

   – 1 x LVDS Output (LCD Operation)

  1. Power Spec.

   – Input Power : 8VDC ~ 24VDC

   – Consumption Power : 12Watt, Max

  1. Switch Input mode

   – Possible to select CAR model while switching mode by DIP S/W

   – By button on the Commander in the car via CAN

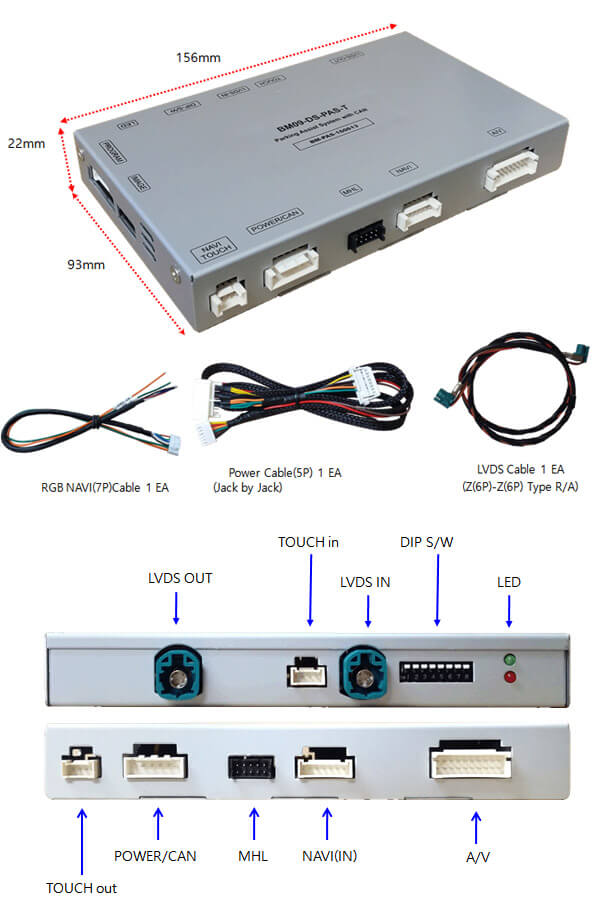

Product Package

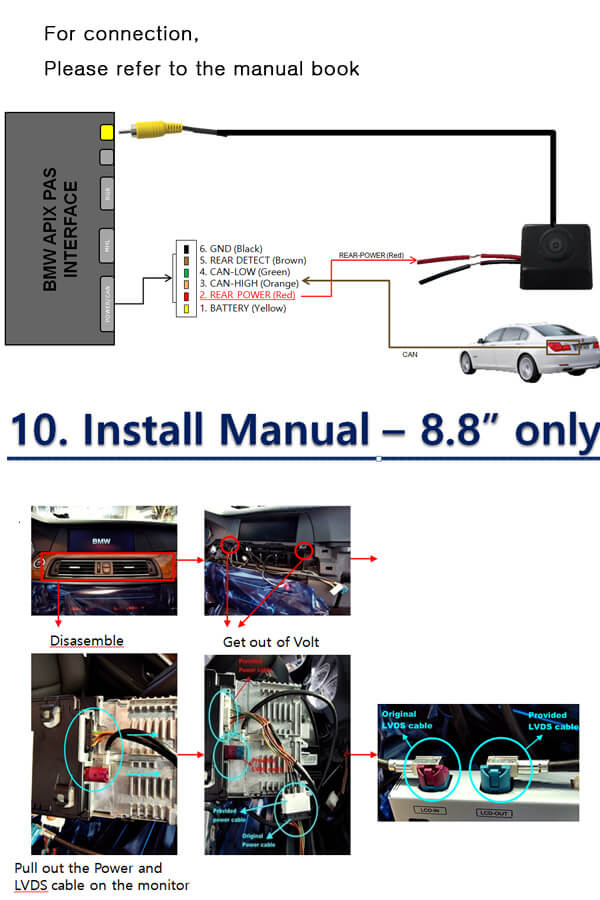

How to Install
